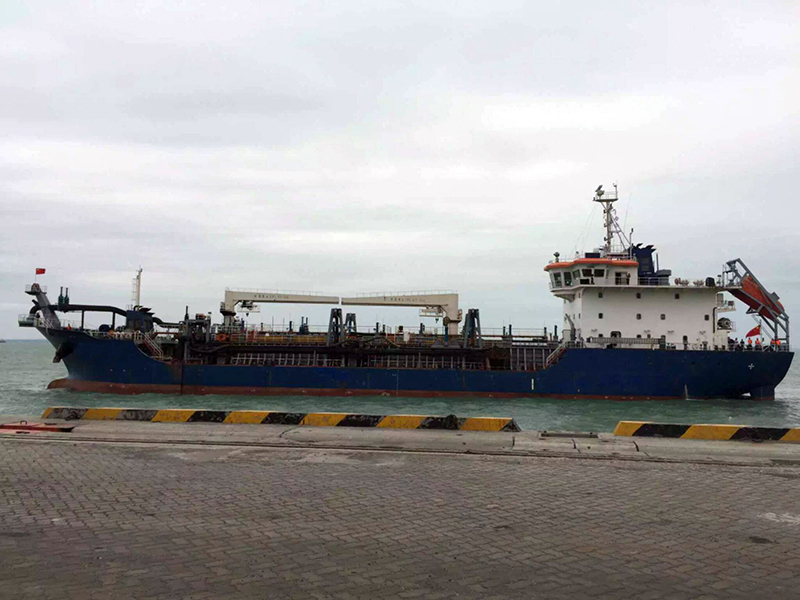

5500CBM TRAIL SUCTION HOPPER DREDGER FOR SALE
===================================
BUILT IN 2013, ZHEJIANG HONGGUAN SHIPBUILDING, CHINA
CCS CLASS
CHINA FLAG
LOA/LBP/BEAM/DEPTH 105/95.2/19/8.0M
DESIGNED DRAFT 4.8M
DREDGING DRAFT 7.24M
RAINBOW AND PUMP SHORE FITTED
CAPACITY 5586CBM
SOIL LOADING CAPACITY 7260T
MAX DREDGING DEPTH 30M
SUCTION PIPE/DISCHARGING PIPE DIAMETER 800/750MM

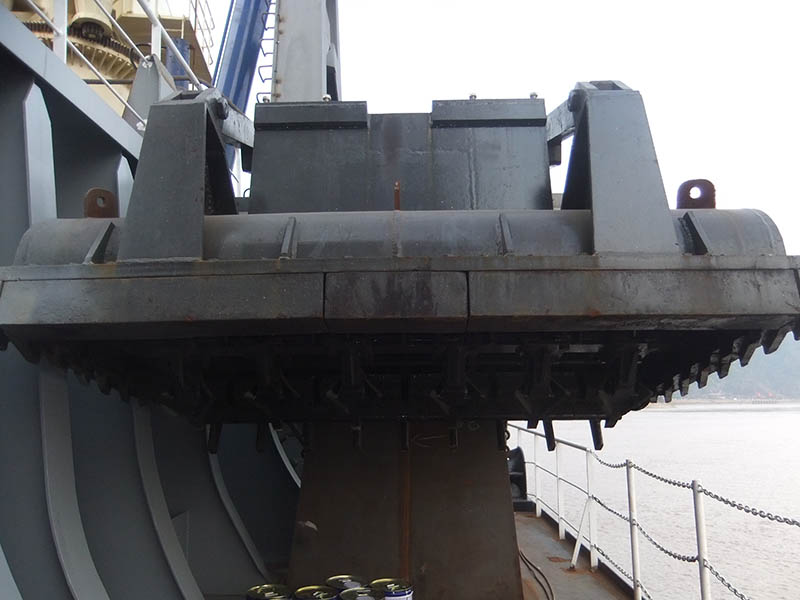

TWO TRAIL SUCTION PIPES WITH THREE LIFTING POINTS

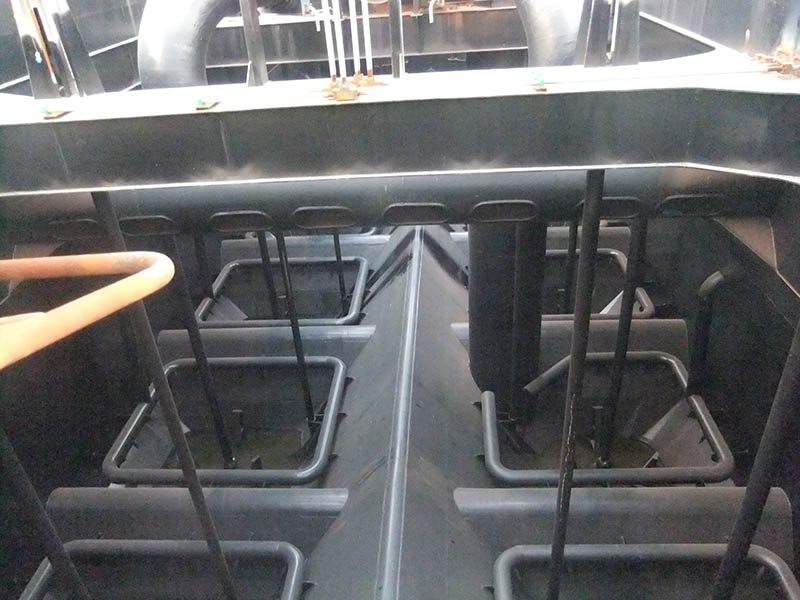

TOTALLY 16 CONIC HOPPER BOTTOM DOORS
TOTAL INSTALLED POWER OF ENGINES 11910KW
MAIN ENGINES GN8320ZC2B/2500KW X 2 SETS MADE BY NINGBO CSI
AUX ENGINE CW6200ZC/450KW X 3 SETS
GENERATORS TFXW-450M6-H
EMERGENCY GENERATOR 120KW X 1 SET
DREDGER PUMP ENGINE GA8300ZC160/2000KW X 2 SETS
DREDGE PUMP (2 SETS) MADE BY HOLLAND BREEMAN SPECIAL PRODUCT B.V.
JET PUMP ENGINE 8190ZIC/720KW X 2 SETS
JET PUMP OTS400-6208/2500CBM PER HOUR X 2 SETS
ONE ELECTRIC BOW THRUSTER TT1300B/BMS-CP/375KW
FULL LOADED NAVIGATION SPEED 11.5K
DREDGING SPEED 2-2.5K
COMPLEMENT 36P
-All details in good faith but without guarantee
|
