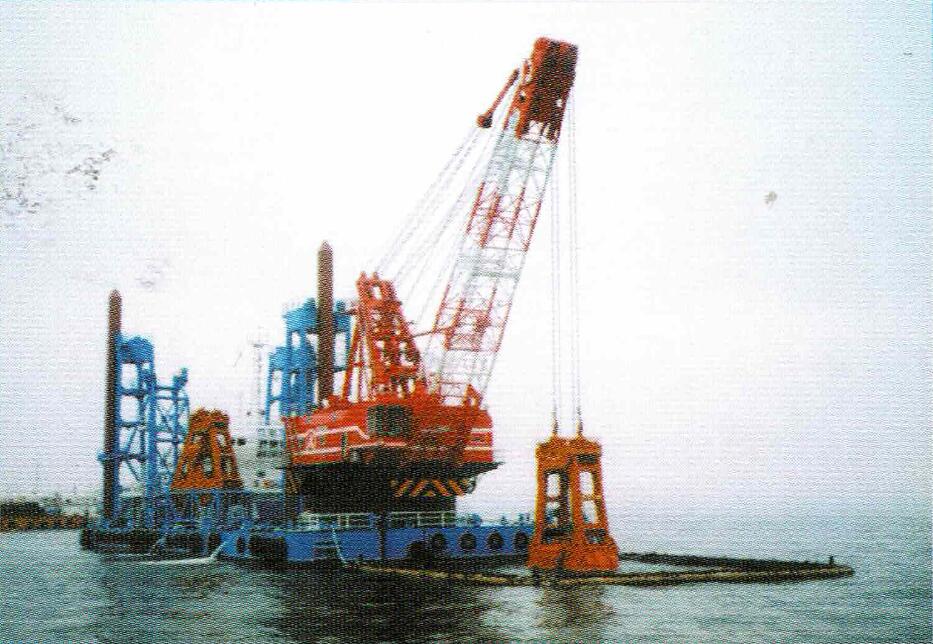

30M3 GRAB DREDGER FOR SALE
BLT 1999 AT JAPAN
======================
TYPE:NON SELF PROPELLED GRAB DREDGER
FLAG:JAPANESE
CLASS:NIL
LAST DRY DOCK:AUG 2017
LBD:56.00 x 23.00 x 4.20m
DRAFT:2.5M
CRANE PART

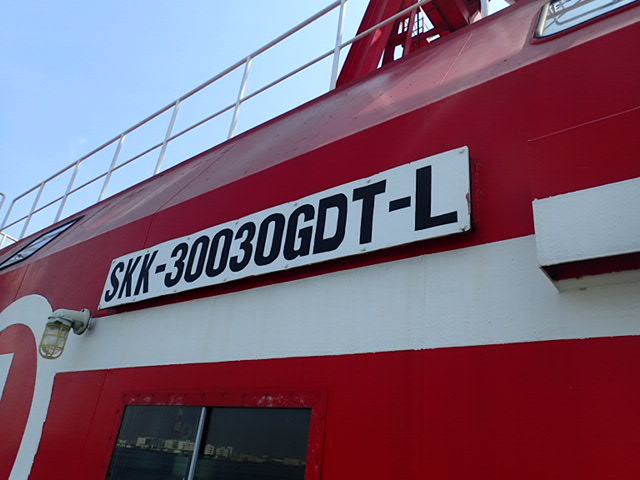

CRANE:SKK-30030GDT-L

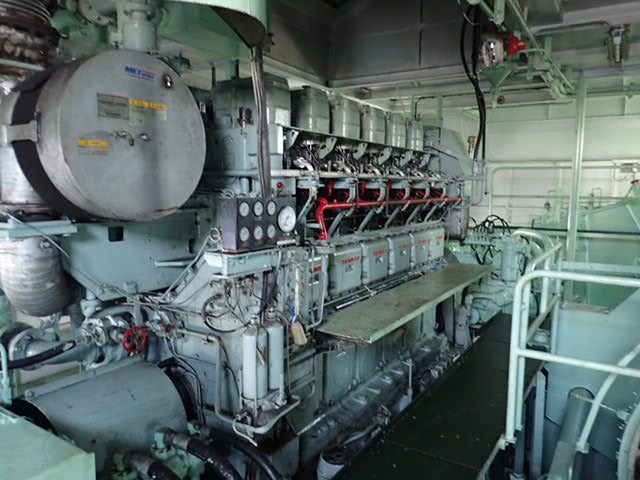

CRANE POWER:YANMAR 6N280L-GN 2,500PS@750RPM X 1
GRAB BUCKET: 30M3 X 65TON X 1
7.5M3 X 100TON X 1
ROCK BREAKING HAMMER:NIL
RATED LINE PULL CAP:110TONS
JIB LENGTH:28M
DREDGING DEPTH(BELOW WATER):50.0M
GRAB LIFTING HEIGHT:10M
GRAB HOISTING ROPE SPEED:0.0~55.0M/MIN
GRAB LOWERING ROPE SPEED:0.0~80.0M/MIN
SLEWING SPEED:0.0~1.2RPM
SPUD PART
SPUD:3 SETS
SPUD SIZE: DIAMETER 1.300 X 38M (60TON/EACH)
WORKING DEPTH: MAX 30M
SPUD LOWERING SPEED: 8M/MIN
GENERATOR:300KVA X 1
990KVA X 2
ROOMS:11 ROOM
DELIVERY IN JAPAN AS IS WHERE IS
|
